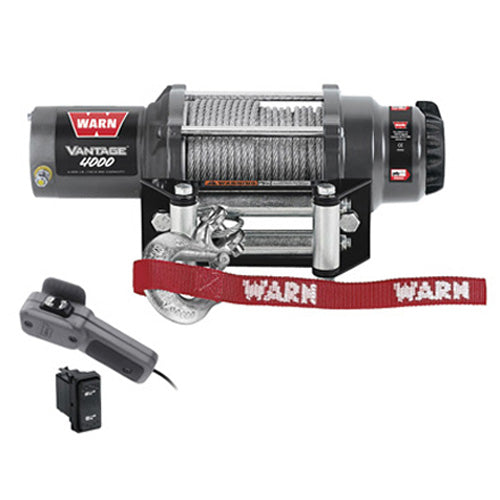

WARN 89040 VANTAGE V4000 WINCH

WARN 89040 VANTAGE V4000 WINCH. The vendor part number is 89040. Read title to know what you are getting. Catalog descrition… Big pulling power and long wire rope-specifically for Side x Sides This is the perfect winch for Side x Side owners who need reliable big pulling power. With a stout 4,000 lb. pulling capacity, 55' of wire rope, and best-in-class performance, the Vantage 4000 will pull the biggest Side x Sides with confidence. 55' of 7/32" wire rope (the longest in the lineup) and a roller fairlead Fully sealed motor and drive train to keep the elements out Three-stage planetary gear train for smooth, efficient operation High-strength composite gear housing and all-metal gears Mechanical spring brake for control while winching Includes dash-mounted mini rocker switch and corded remote control Warranty: 5 year mechanical, 1 year electrical (North America) SPECS Rated Line Pull:4000 lbs. (1814 kgs) Motor:12V DC, 1.4 hp (1.0 kW) Permanent Magnet, Sealed Controls:Dash Mounted Rocker Gear Train:3-Stage Planetary Gear Ratio:180:1 Clutch (Freespool):Cam Activated Brake:Spring Drum Diameter/Length:2.25"/4.7" (52mm/74mm) Kit Shipping Weight:32.0 lbs. (14.5 kgs) Rope:Wire, 7/32 x 50' (5.5 mm x 15 m) Fairlead:Roller Recommended Battery:14 Amp/hr minimum Duty Cycle:Intermittent Battery leads:6 gauge Finish:Grey Powder Coat Winch Weight:17.5 lbs. (8.0 kgs) Mechanical Warranty:Limited Five Year Electrical Warranty:1 year PERFORMANCE DATA Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current 0 18.6 (5.7) 21.6 500 (227) 15.8 (4.8) 40.7 1000 (454) 13.7 (4.2) 61.8 1500 (680) 11.6 (3.5) 84.2 2000 (907) 10.0 (3) 106.4 2500 (1134) 8.7 (2.7) 129 3000 (1361) 7.3 (2.2) 152.5 3500 (1588) 6.2 (1.9) 176.8 4000 (1814) 5.3 (1.6) 200.8 PULL BY LAYERunicode,lucida grande,sans-serif;"> Pull by layer layer/Lbs(Kgs.) 1/4000 (1814) 2/3360 (1524) 3/2822 (1280) 4/2371 (1075) For more information on this product check out this video.
