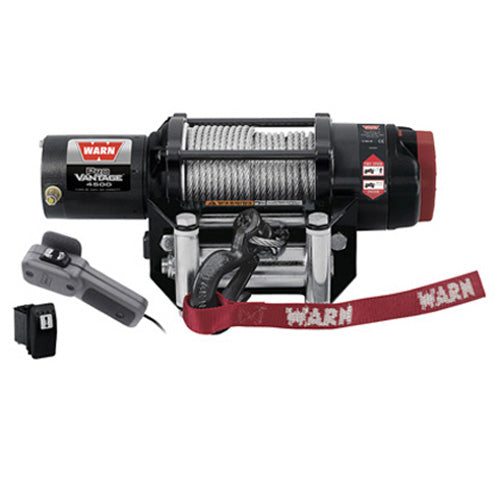

WARN 90450 PROVANTAGE PV4500 WINCH

WARN 90450 PROVANTAGE PV4500 WINCH. The vendor part number is 90450. Read title to know what you are getting. Catalog descrition… Designed for the extra weight of a Side x Side, and made with premium parts When it comes to a winch for your Side x Side, you need extra pulling power, and this market-leading winch has it in spades. With a massive 4,500 lb. capacity, all-metal gear end housing, and a powerful permanent magnet motor, this winch has the extra power to pull your Side X Side or a heavy load with ease. 55' of 7/32" wire rope (the longest in the lineup) and a plow roller fairlead Hook, tie rods, and body feature attractive, corrosion-resistant black finish Three-stage planetary gear train for smooth, efficient operation. Ergonomic clutch handle Patented roller disc brake for outstanding control Fully sealed motor and drive train to keep the elements out Includes illuminated dash-mounted control switch and corded remote All-metal gear housing and gears Warranty: Limited lifetime, 3 year electrical (North America) SPECS Rated Line Pull: 4500 lbs. (2041 kgs) Motor: 12V DC, 1.9 hp (1.4 kW) Permanent Magnet Controls: Remote and Dash Mounted Lighted Rocker Switch Gear Train: 3-Stage Planetary Gear Ratio: 154:1 Clutch (Freespool): Sliding Pin and Ring Gear Brake:b>Roller Disk Drum Diameter/Length: 2.25"/4.7" (57mm/119mm) Kit Shipping Weight: 33.5 lbs. (15.2 kgs) Rope: Wire, 7/32" x 50' (5.5mm x 15.2m) Fairlead: Hawse Recommended Battery: 14 AH minimum Duty Cycle: Intermittent Battery leads: 6 gauge Finish: Black Powder Coat Mechanical Warranty: Limited Lifetime Electrical Warranty: 3 year Winch Weight: 19.0 lbs. (8.6 kgs) PERFORMANCE DATA Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current 0 23.6 (7.2) 19.1 ande,sans-serif;">500 (227) 18.5 (5.6) 54.9 1000 (454) 16.7 (5.1) 84.7 1500 (680) 13.7 (4.2) 113.7 2000 (907) 11.2 (3.4) 144.7 2500 (1134) 8.4 (2.6) 175.0 3000 (1361) 7.3 (2.2) 206.3 3500 (1588) 5.7 (1.7) 241.2 4000 (1814) 3.6 (1.1)mily: lucida sans unicode,lucida grande,sans-serif;">278.8 4500 (2041) 2.9 (0.9) 318.0 PULL BY LAYER Pul
