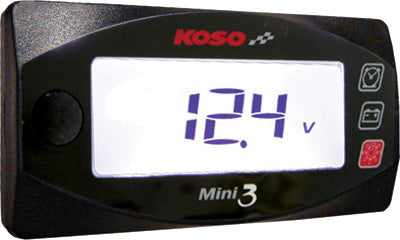

KOSO MINI 3 CLOCK & VOLT METER PART# BA003160

KOSO MINI 3 CLOCK & VOLT METER. THE VENDOR PART NUMBER IS BA003160. Make sure to read title carefully to know what you are getting. Catalog description…..

All gauges include any needed sensors and hardware, mounts sold separately.

A. Amp/Volt

• For 12 volt DC systems
• Amp display range: 0 - 30 amps, 0.1 amp increments
• Volt display range: 6.0 - 19.9 volts, 0.1 volt increments
• Low and high voltage warning
• Dimensions: 60.5 mm x 30.5 mm x 12.3 mm

B. Clock/Volt

• For 12 volt DC systems
• Volt display range: 6.0 - 19.9 volts, 0.1 volt increments
• Low and high voltage warning
• 24 hour clock
• Dimensions: 60 mm x 30 mm x 11.5 mm

C. Air/Fuel Ratio

• For 12 volt DC systems
• Display range: 12.2 - 17.2, .01 increments
• Includes oxygen sensor and weld-in bung
• Dimensions: 60 mm x 30 mm x 11.5 mm

D. Oil Pressure

• For 12 volt DC systems
• Display range: 0 - 100 psi / 0 - 7.0 kgf in 0.1 increments
• Low pressure warning
• Dimensions: 60 mm x 30 mm x 11.5 mm

E. Dual Temperature

• For 12 volt DC systems
• Dual liquid temperature reading (example: coolant/oil) in °F and °C
• High temperature warning
• Dimensions: 60 mm x 30 mm x 11.5 mm

F. Ambient Air Temperature

• For 12 volt DC systems
• Display range: -22 ~ +120° F / -22° ~ +140° C
• Dimensions: 60 mm x 30 mm x 11.5 mm

G. Ambient Air Temperature/Clock/Volt

• For 12 volt DC systems
• Temperature display range: -22 ~ +120° F / -22° ~ +140° C
• Volt display range: 6.0 - 19.9 volts, 0.1 volt increments
• Low and high voltage warning
• 24 hour clock
• Dimensions: 60 mm x 30 mm x 11.5 mm

H. Universal Mount for Mini 3 Gauges
