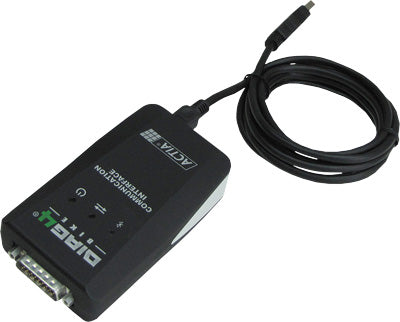

DIAG4 BIKE Serial Diagnostic System Usb Interface W/Case PART NUMBER AT 532 5006

This listing is listed with our fitment link on the home page and will fit many years and make. Please check it out on our home page to make sure it fits year, make and model search… DIAG4 BIKE Serial Diagnostic System Usb Interface W/Case PART NUMBER AT 532 5006 . The vendor part number is AT 532 5006 Read title carefully to know what you are getting Catalog description…

NOTE:  SOFTWARE INCLUDED IS ONLY DRIVERS   MUST PURCHASE HARLEY/BMW TUNE SOFTWARE SEPARTELY

Diag4Bike Serial Diagnostic System

Professional diagnostic tool for Harley Davidson & Buell workshops and tuning centers Diagnoses electronic fuel injection module (EFI) and others (Security modules, ABS, etc ) though the diagnostic connector The kit contains a communication interface with Harley-Davidson adapter, USB cable for connection to your Laptop (PC) and software compatible with Windows XP, Vista, 7 and 8   An adapter for CAN-BUS models is included The system performs the following functions and more

Overview of control units that can be diagnosed

• Ignition Module
• EFI (Electronic Fuel Injection Module) - All models
• TSSM (Turn Signal Security Module) Key FOB with button
• HFSM (Hands Free Security Module) Key FOB without button
• BCM (Body Control Module) Key FOB without button
• Gauges (Speedo, Tach and Instrument Module) - All models
• ABS Module (Delphi + CAN models) - All models
• Radio and Audio all models
• Thunder MAX EFI
• Read and Clear Diagnostic Trouble Codes All models
• Read Identification data (part numbers, VIN number) All models
• Monitoring real-time data (throttle position, temperature, oxygen sensors, turn signals etc )
• Test actuators (injectors, coils, main relay, fuel pump, idle, turn signals, tachometer, lamps etc )
• Buell diagnostics are incorporated in Harley-Davidson diagnostics
• Unit of measure selection metric/standard

Toolbox

(special functions that can be performed)

• Module replacement –TSM, TSSM, HFSM, BCM,
• ABS Service (Bleeding and configuration, Delphi + CAN models) - All models
• ACR (Automatic compression release during starting)
• Cruise Control, Exhaust actuator, EITMS enable/disable
• Radio customization-region code and speaker configuration, radio pairing
• Idle speed adjustment 800 - 1200 rpm (models with Delphi Electronic Fuel Injection Module)
• TSSM Customization PIN read/change, Auto arming disable/enable etc
• HFSM Customization Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change
• BCM Customization Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change
• Disarming (HFSM/BCM module)
