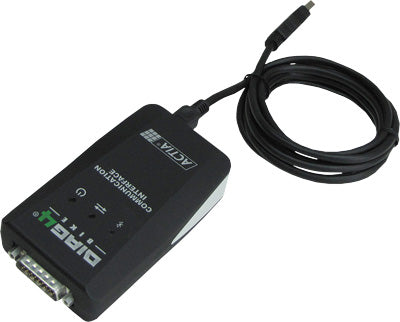

DIAG4 BIKE SERIAL DIAGNOSTIC SYSTEM USB INTERFACE W/CASE AT 532 5006

Up for sale is SERIAL DIAGNOSTIC SYSTEM USB INTERFACE W/CASE . The vendor part number is AT 532 5006 . Read title carefully to know what you are getting. Catalog description…

NOTE:  SOFTWARE INCLUDED IS ONLY DRIVERS.  MUST PURCHASE HARLEY/BMW TUNE SOFTWARE SEPARTELY

Diag4Bike Serial Diagnostic System

Professional diagnostic tool for Harley Davidson & Buell workshops and tuning centers. Diagnoses electronic fuel injection module (EFI) and others (Security modules, ABS, etc.) though the diagnostic connector. The kit contains a communication interface with Harley-Davidson adapter, USB cable for connection to your Laptop (PC) and software compatible with Windows XP, Vista, 7 and 8.  An adapter for CAN-BUS models is included. The system performs the following functions and more.

Overview of control units that can be diagnosed

• Ignition Module
• EFI (Electronic Fuel Injection Module) - All models
• TSSM (Turn Signal Security Module)..............Key FOB with button
• HFSM (Hands Free Security Module).............Key FOB without button
• BCM (Body Control Module).............Key FOB without button
• Gauges (Speedo, Tach and Instrument Module) - All models
• ABS Module (Delphi + CAN models) - All models
• Radio and Audio all models
• Thunder MAX EFI
• Read and Clear Diagnostic Trouble Codes......................All models
• Read Identification data (part numbers, VIN number)......All models
• Monitoring real-time data (throttle position, temperature, oxygen sensors, turn signals etc.)
• Test actuators (injectors, coils, main relay, fuel pump, idle, turn signals, tachometer, lamps etc.)
• Buell diagnostics are incorporated in Harley-Davidson diagnostics
• Unit of measure selection metric/standard

Toolbox

(special functions that can be performed)

• Module replacement –TSM, TSSM, HFSM, BCM,
• ABS Service (Bleeding and configuration, Delphi + CAN models) - All models
• ACR (Automatic compression release during starting)
• Cruise Control, Exhaust actuator, EITMS......enable/disable
• Radio customization-region code and speaker configuration, radio pairing
• Idle speed adjustment 800 - 1200 rpm (models with Delphi Electronic Fuel Injection Module)
• TSSM Customization......PIN read/change, Auto arming disable/enable etc.
• HFSM Customization......Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change
• BCM Customization........Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change
• Disarming (HFSM/BCM module)........PIN read/FOB assignment on armed bike (for BCM modules a CAN disarming cable is needed)
• Buell TPS adjustment
• Datalogging
• ABS Module (embedded/not embedded)
• Speedo module pairing
• Wheel size adjustment (Speedo calibration)
